Color / PMS Color Matching

• All images should be provided in CMYK color format at full production size when possible.
• Files should use Wrapmate's CMYK (Coated Gracol 2006) profile and be created on calibrated monitors.
• Rich black: spot color named Pure Black — 60C 40M 40Y 100K.
• Vector artwork should use PMS colors from Pantone PLUS Solid Coated Formula Guide.
• Each spot color must be named in the format PANTONE ColorName C.

Tile Breaks

• Non-reflective vinyl: continuous prints up to 59" wide.
• Reflective vinyl: continuous prints up to 47" wide.
• For non-seamless (wallpaper-style) projects, Wrapmate can make vertical tile breaks.

File Type / Resolution / Cut to Shape

• Wrapmate accepts PDF files only. Minimum resolution: 500 ppi at actual print size.
• Raster limits: maximum 30,000 pixels (width/height).
• Convert all fonts to outlines.
• Kiss Cut layer: dedicated layer, 0.1pt centered stroke, C50 M0 Y100 K0. Through Cut: C0 M100 Y0 K0.
• Bleed: 0.0625" beyond cut lines. Minimum text/art thickness: 0.125".
• Avoid overprint fills and transparency effects that may rasterize incorrectly.

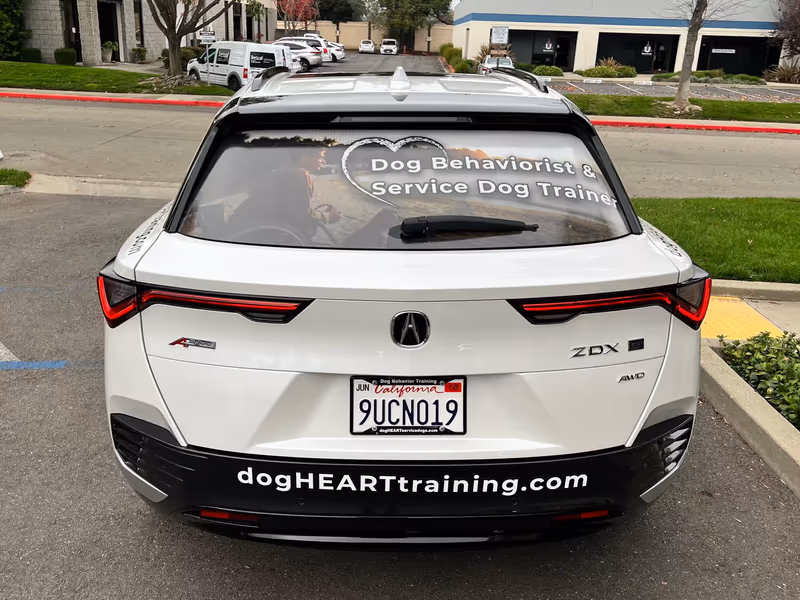

• Perforated/window film will print differently from solid wrap films due to material differences.

General Guidelines

• Ensure all graphics are embedded and all layers organized.
• Verify spelling, punctuation, and grammar. Artboard must match art size including bleed.
• Maximum 200" linear length for art boards.
• Files should not be locked, encrypted, or password protected.
• Customer is responsible for layout, accuracy, and proofing prior to submission.
• Additional service fees apply when Wrapmate must adjust provided files to meet print standards.
